TL;DR:
- Water flow alarms detect sprinkler water movement and immediately alert building occupants and responders. Proper installation, calibration, and maintenance are vital for compliance and effective fire safety. Neglecting these devices increases risks of property damage, injury, and legal penalties.
Water flow alarms are defined as detection devices that sense water movement inside a fire sprinkler system and trigger an immediate alert when sprinklers activate. Every facility manager responsible for a commercial or industrial building needs to understand why water flow alarms matter. Without them, sprinklers can suppress a fire while building occupants and emergency responders receive no notification at all. NFPA 13 sets the baseline requirement for these devices, and failing to meet it carries real financial and legal consequences.
Why water flow alarms matter in fire protection systems
Waterflow switches serve as the critical link translating mechanical water movement into electrical alarms. That translation is what separates a sprinkler system that quietly fights a fire from one that actively saves lives by alerting everyone in the building. The industry standard term for these devices is “waterflow switch” or “flow detector,” and you will see both terms used interchangeably with “water flow alarm” across NFPA documentation and inspection reports.
The core function is straightforward. When a sprinkler head opens due to heat, water rushes through the pipe. The waterflow switch detects that movement and sends a signal to the Fire Alarm Control Panel, which then triggers audible alarms and notifies a central monitoring station. Modern fire protection standards require these devices to be integrated with Fire Alarm Control Panels for near-instant notification to occupants and responders. Speed is the entire point. Every minute of delay in notification increases the risk of casualties and property loss.

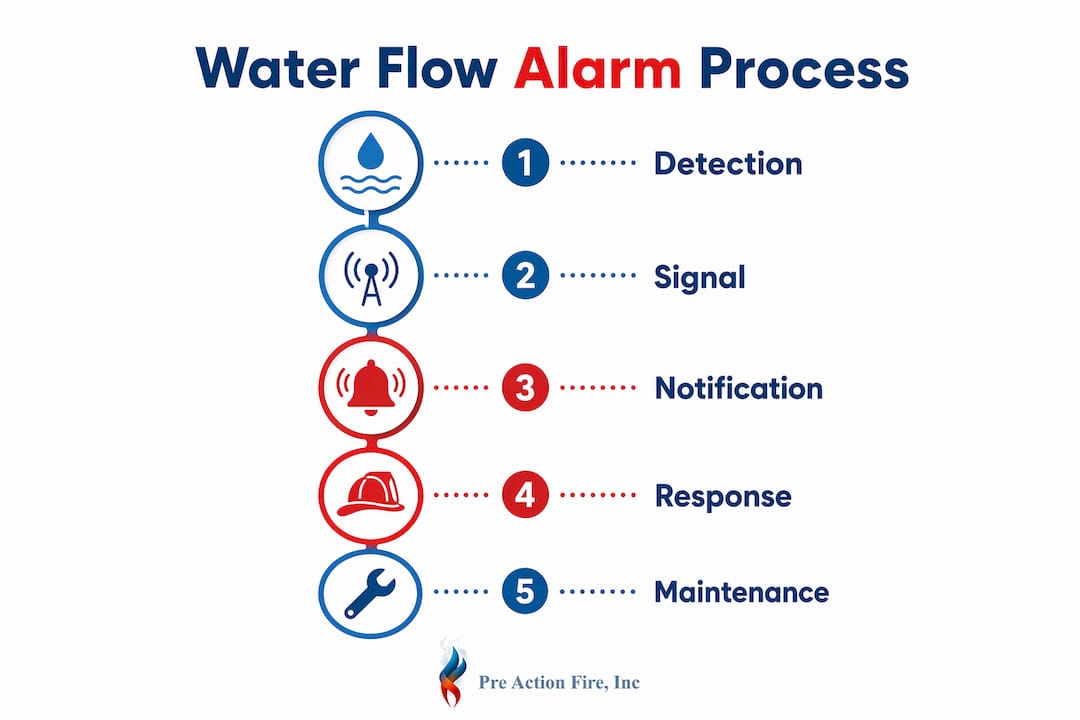

The real role of fire alarms in any commercial building depends on this chain of detection, signaling, and response working without interruption. A sprinkler system without a functional waterflow switch is a silent system. It may control a fire, but it will not call for help.
How do water flow alarms work in industrial sprinkler systems?

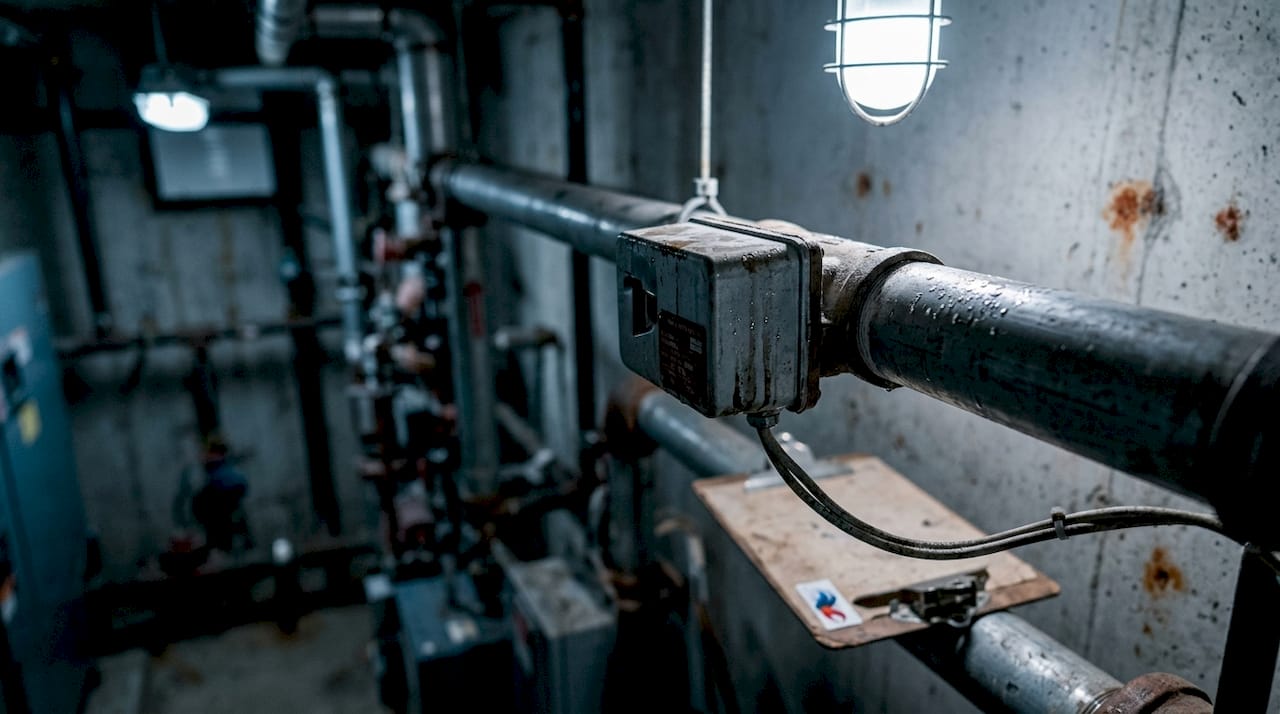

Two primary sensor types dominate industrial installations: vane-type flow switches and electric pressure switches. Vane-type switches insert a paddle into the pipe. When water flows past, the paddle deflects and triggers a set of electrical contacts. Electric pressure switches detect the pressure change that occurs when water begins moving. Both types connect to the Fire Alarm Control Panel and initiate the same notification chain.
The most misunderstood feature of these devices is the retard mechanism. Waterflow switches are calibrated with a 30–60 second adjustable time delay to prevent false alarms from pressure surges. Without this delay, a water hammer event or a brief pressure fluctuation in the supply line would trigger a full alarm response. The retard mechanism can be adjusted from 0 to 90 seconds depending on site conditions, giving technicians the ability to tune the system to the specific pressure behavior of each building.
Placement within the pipe network is equally critical. The following installation factors directly affect reliability:
- Distance from fittings: Vane-type switches must be positioned away from tees, elbows, and valves to avoid turbulent flow zones that cause erratic paddle movement.
- Pipe orientation: Horizontal runs are preferred for vane-type switches. Vertical installations require specific paddle configurations.
- Proximity to the riser: Switches placed too close to the main riser can pick up system-wide pressure events rather than localized sprinkler activation.
- Clearance for access: Switches need accessible wiring conduit runs and enough clearance for testing and replacement without major disruption.
Improper placement is a frequent cause of system inspection failures. A switch installed near a turbulent flow zone may generate false alarms or, worse, fail to trigger during an actual fire event.
Pro Tip: Ask your fire protection contractor to document the exact placement rationale for every waterflow switch during installation. That documentation becomes your defense during third-party inspections and your roadmap for future maintenance.
Why are water flow alarms crucial for safety and compliance?
NFPA 13 mandates waterflow alarms on sprinkler systems, and NFPA 13 Section 6.8.3.1 outlines requirements for both mechanical and electric alarm types. Electric flow switches connected to fire alarm panels are the current standard for most commercial and industrial occupancies. Facilities that lack 24-hour monitoring may still use water motor alarms, but that approach is increasingly rare in industrial settings.
The safety benefits of a properly functioning waterflow alarm system include:
- Occupant notification: Audible and visible alarms give building occupants time to evacuate before conditions become life-threatening.
- Emergency responder notification: Signals sent to central monitoring stations dispatch fire departments within seconds of activation.
- Building management alerts: Facility managers receive notification even when off-site, enabling rapid decision-making about evacuation and asset protection.
- Documentation of activation: The Fire Alarm Control Panel logs the time and zone of activation, which supports post-incident investigation and insurance claims.
Failure to maintain compliant waterflow detection leads to financial penalties including higher insurance premiums and fire code violations, especially during third-party inspections. Passing inspections requires audible alarms and confirmed signals sent to central monitoring stations. A facility that fails this test faces immediate compliance notices and potential operational shutdowns until corrections are made.
The business continuity argument is just as strong as the safety argument. A fire that activates sprinklers but generates no alarm can spread to adjacent zones before anyone responds. The resulting property damage and business interruption costs far exceed the cost of maintaining a compliant waterflow detection system. For industrial facilities with high-value equipment or inventory, that calculation is not close.
Common challenges and best practices in water flow alarm installation
Installing and maintaining waterflow switches in industrial facilities involves operational disruptions that many facility managers underestimate. The process requires careful planning before any work begins.
-
Drain the system before installation. Installing a vane-type flow switch on a wet-pipe system requires draining the sprinkler riser and coordinating a fire watch. The fire protection system is temporarily offline during this process, which creates real risk exposure.
-
Coordinate fire watch immediately. Local fire authorities and monitoring services must be notified before the system goes offline. Fire watch personnel must be stationed throughout the affected area until the system is restored and tested.
-
Calibrate the retard delay for your site. Choosing the correct delay for the pneumatic retard mechanism balances minimizing nuisance alarms with ensuring timely fire notification. A setting that is too short generates false alarms. A setting that is too long delays the emergency response. This calibration requires technical expertise, not guesswork.
-
Test after every installation or replacement. Flow testing confirms that the switch triggers at the correct flow rate and that the signal reaches the Fire Alarm Control Panel and monitoring station. Document every test result.
-
Schedule annual inspections. NFPA 25 sets inspection and testing intervals for waterflow switches. Annual testing is the minimum standard for most industrial occupancies. High-risk facilities may require more frequent checks.
Regular, coordinated testing and maintenance of water flow alarms are vital to avoid costly compliance failures and enhance life safety in industrial facilities. Skipping maintenance does not just risk a failed inspection. It risks a real fire event where the alarm never sounds.
Pro Tip: Schedule waterflow switch testing during planned maintenance windows and notify your monitoring station in advance. This prevents unnecessary emergency dispatch and keeps your false alarm record clean with the local fire department.
Alarm fatigue is a serious operational risk when retard mechanisms are miscalibrated or switches are poorly placed. When staff experience repeated false alarms, they begin to treat real alarms as nuisances. That behavioral shift can cost lives.
How do water flow alarms integrate into a full fire protection system?
Waterflow switches do not operate in isolation. Waterflow, tamper, and supervisory switches must operate as an integrated system to deliver comprehensive fire protection and system readiness. Each device type serves a distinct function within that ecosystem.
The three core switch types work as follows:
- Waterflow switches detect active sprinkler discharge and trigger emergency alarms.
- Tamper switches monitor the position of control valves and alert supervisors when a valve is closed without authorization.
- Supervisory switches monitor system conditions such as water pressure and temperature to confirm the system is ready to operate.
All three feed into the Fire Alarm Control Panel, which serves as the central hub for monitoring, logging, and notification. Central monitoring stations receive signals from the panel and dispatch emergency services when required. Local notification devices, including horns and strobes, activate simultaneously to alert building occupants.
The advantages of full integration are significant. A tamper switch catches a closed valve before a fire occurs. A supervisory switch flags a low-pressure condition that would reduce sprinkler effectiveness. A waterflow switch confirms that the system has activated and that help is on the way. Together, these devices create a layered detection and notification system that no single device can replicate alone.
Fire monitoring service advantages for facility managers extend beyond emergency dispatch. Monitoring services provide 24-hour system oversight, log all alarm events, and generate reports that support annual inspections and insurance documentation. For industrial facilities with multiple buildings or remote locations, central monitoring is the only practical way to maintain continuous system awareness.
Sprinkler installation benefits are fully realized only when waterflow detection is correctly integrated. A sprinkler system without a functioning alarm network is an incomplete fire protection system.
Key Takeaways
Water flow alarms are the notification backbone of any sprinkler system, and without them, even a functioning sprinkler system fails to protect lives or meet NFPA 13 compliance requirements.
| Point | Details |
|---|---|
| Core function | Waterflow switches convert water movement into electrical signals that alert occupants and emergency responders. |
| Retard mechanism | A 0–90 second adjustable delay prevents false alarms from pressure surges without delaying real emergency notification. |
| Compliance requirement | NFPA 13 mandates waterflow alarms; non-compliance triggers insurance penalties and fire code violations. |
| Placement accuracy | Switches must be installed away from turbulent flow zones to prevent false alarms and detection dead zones. |
| System integration | Waterflow, tamper, and supervisory switches must work together through a Fire Alarm Control Panel for complete protection. |
What facility managers get wrong about waterflow switches
The most common mistake I see facility managers make is treating waterflow switches as a set-and-forget component. They get installed during construction, pass the initial inspection, and then receive no attention until something goes wrong. By that point, the retard mechanism may be miscalibrated, the switch paddle may be corroded, or the wiring connection to the Fire Alarm Control Panel may have degraded. None of those failures are visible without testing.
The second mistake is underestimating alarm fatigue. When a facility generates repeated false alarms because a switch is poorly placed or the retard delay is too short, staff start ignoring the alarm. That is not a hypothetical risk. It is a documented pattern that fire safety professionals encounter regularly. The fix is not complicated. It requires correct installation and proper calibration from the start, followed by consistent annual testing.
The third mistake is treating waterflow alarms as separate from the broader fire protection system. A waterflow switch that signals correctly but connects to a Fire Alarm Control Panel with a wiring fault delivers no benefit. The entire chain must be tested together. Facility managers who understand this tend to have cleaner inspection records and lower insurance costs. Those who do not find out the hard way.
— Results
Reliable water flow alarm systems for Denver facilities
Preactionfire has served the Denver Metro Area since 2009, and waterflow alarm installation, testing, and maintenance are core parts of that work. NICET-certified technicians handle every project, from new construction integration to upgrades on existing systems.
Facilities that need compliant fire alarm systems in Denver get a full assessment of their current waterflow detection setup, including switch placement, retard calibration, and Fire Alarm Control Panel integration. Preactionfire also coordinates fire watch during system downtime and handles all required notifications to local authorities and monitoring services. Contact Preactionfire directly to schedule an inspection or discuss a new installation.
FAQ
What is a water flow alarm in a sprinkler system?
A water flow alarm, also called a waterflow switch, is a device that detects water movement inside a sprinkler pipe and sends an electrical signal to the Fire Alarm Control Panel when a sprinkler head activates. It triggers audible alarms and notifies central monitoring stations so emergency responders can be dispatched immediately.
How does the retard mechanism prevent false alarms?
The retard mechanism introduces an adjustable time delay of 0–90 seconds before the waterflow switch sends an alarm signal. This delay filters out brief pressure surges and water hammer events that would otherwise trigger unnecessary emergency responses.
What does NFPA 13 require for waterflow alarms?
NFPA 13 requires waterflow detection devices on sprinkler systems, with electric flow switches connected to Fire Alarm Control Panels as the current standard for commercial and industrial occupancies. NFPA 13 Section 6.8.3.1 outlines the specific requirements for both mechanical and electric alarm types.
What happens if a waterflow alarm fails inspection?
A failed waterflow alarm inspection results in fire code violations, potential increases in insurance premiums, and a compliance notice requiring corrective action before the facility can be cleared. Passing inspection requires confirmed audible alarms and verified signals reaching the central monitoring station.
How often should waterflow switches be tested?
NFPA 25 sets annual testing as the minimum standard for waterflow switches in most commercial and industrial occupancies. High-risk facilities or those with a history of system issues may require more frequent testing to maintain compliance and system reliability.
