Fire alarm shop drawings are the installation-level plans an authority having jurisdiction (AHJ) uses to verify that a system meets NFPA 72, before a single device goes on the wall. A package that passes review the first time always contains a sequence of operation, scaled floor plans, a riser or single-line diagram, manufacturer data sheets, and battery and voltage-drop calculations. Skip any one of those and a plan reviewer will bounce the submittal back, adding weeks to a project timeline.
Reviewers check a short list before they read anything else:
- Sequence of operation (input/output matrix)
- Scaled floor plans with device locations and mounting heights
- Riser or single-line diagram showing circuits and power
- Manufacturer cut sheets and calculations
- Device legend with symbols and quantities
Pro Tip: Print your floor plans at the scale you’ll submit and check that a graphic scale bar actually appears on the sheet. Reviewers reject more sets over missing scale bars than almost any other formatting issue.
The stakes are real. Industry guidance on fire alarm submittals points out that the shop drawing phase is the last, best chance to catch a design flaw before it becomes a field correction, which costs far more to fix once conduit is in the wall.
TL;DR:
- Complete shop drawings must include a sequence of operation, scaled floor plans with device locations, riser diagrams, manufacturer data sheets, and battery calculations to pass review.
- Reviewers frequently reject plans due to missing scale bars, vague sequence descriptions, incomplete calculations, or administrative errors like unsigned sheets.
- Properly testing the sequence of operation before final device placement helps catch interface issues with systems like elevators or suppression early in the process.
- Following local AHJ requirements, including format, revision procedures, and certification signatures, expedites approval and minimizes delays.
- Experienced review teams prioritize real system scenarios over checklist compliance, so thorough field scenario walkthroughs improve first-pass approval chances.
Table of Contents
- Fire Alarm Design Drawings: The Full Code-Mapped Checklist
- How to Build an AHJ-Ready Shop Drawing Package Step by Step
- Fixing the Comments That Get Fire Alarm Plans Rejected
- Permit Review and AHJ Submission: What Actually Speeds Things Up
- A Practitioner’s Checklist Before Any Submittal Goes Out
- Key Takeaways
- Why Field Experience Beats a Checklist Alone
- Get Your Fire Alarm Shop Drawings Right the First Time
- Sources
Fire Alarm Design Drawings: The Full Code-Mapped Checklist
A complete set of fire alarm design drawings maps almost item for item to NFPA 72’s documentation requirements in Chapter 7, with Section 7.4 specifically addressing shop drawing content. Municipal codes layer on their own specifics, but the NFPA structure is the backbone every AHJ in the country recognizes.
Start with the written narrative. Every package needs a short system description that states the code edition you designed to, the occupancy type, and how the system is organized by zone or floor. This isn’t filler. It’s the document a reviewer reads first to understand what they’re about to check.
From there, the checklist runs like this:
- Floor plans: scale, north arrow, device locations, mounting heights, and ceiling details where sloped or high ceilings affect detector spacing.

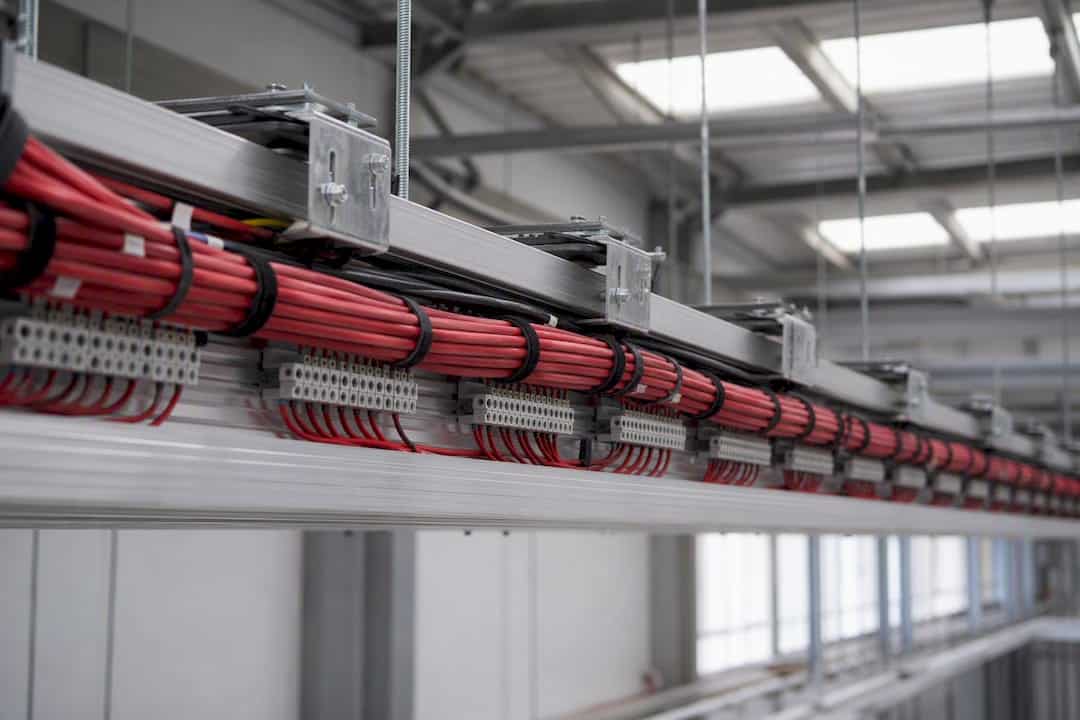

- Riser and single-line diagrams: circuit routing, device counts per circuit, conductor sizes, end-of-line resistor locations, and primary/secondary power sources.
- Sequence of operation: an input/output matrix or narrative that ties every initiating device to its corresponding output.
- Manufacturer data and calculations: battery standby calculations, voltage-drop math, amplifier loading for voice systems, and candela/dB ratings for notification appliances.
- Device legend and symbol list: symbols drawn per NFPA 170 with quantities called out, plus labeling conventions for devices and wiring.
- As-built provisions: a plan for capturing field changes so the record set matches what actually got installed.
Battery calculations deserve special attention. Panels need to demonstrate 24 hours of standby plus 5 minutes of alarm draw, and voltage-drop math has to confirm the last appliance on a circuit still sees enough voltage to operate, based on UL-listed values and conductor resistance. Skip this and a reviewer will send the whole package back for one missing spreadsheet.
How to Build an AHJ-Ready Shop Drawing Package Step by Step
Producing fire alarm installation diagrams that clear review on the first pass follows a fairly predictable order. Jumping steps is where most delays start.
- Confirm the AHJ’s code edition and local checklist. Denver and most Colorado jurisdictions adopt NFPA 72 through the International Building Code, but always verify the specific edition and any local addendum before you draw a single line.
- Draft the system narrative and a preliminary riser. This surfaces interface questions early, like whether the fire alarm needs to trigger elevator recall or a smoke control sequence, before you’ve committed to a device layout.
- Produce scaled floor plans with mounting heights and ceiling details. Lock the architecture down before you place devices, since ceiling geometry drives detector spacing and appliance placement.
- Finalize the sequence of operation and use it to test every interface. Walk through elevator recall, smoke control, and any suppression system tie-ins line by line against the matrix.
- Run battery and voltage-drop calculations and attach the manufacturer cut sheets that back up every candela, dB, and current-draw number on the drawing.
- Assemble a single searchable PDF, name it per the jurisdiction’s convention, and include a short clarification letter describing any deviations from a prior submittal.
Pro Tip: Build the sequence of operation before you finalize device placement, not after. It forces you to confirm every initiating device actually has a programmed response, which catches gaps no floor plan review ever will.
Fixing the Comments That Get Fire Alarm Plans Rejected
Plan reviewers see the same handful of mistakes over and over, and most have a fast fix.
- Missing existing-system documentation. On upgrade projects, reviewers routinely reject sets that don’t show existing devices, circuits, and end-of-line resistors. Add a clearly labeled “existing” layer to the riser and floor plans so old and new equipment are visually distinct.
- Vague sequence of operation. A narrative that says “smoke detector activates alarm” isn’t enough. Replace it with an explicit input/output matrix listing every device type against every output it triggers, including any exceptions or delays.
- Thin calculations. Battery and voltage-drop math needs to show its work, not just a final number. Include the load table, wire run lengths, and the standby duration assumption.
- Labeling and scale problems. No north arrow, no graphic scale, or a print resolution too low to read device labels are among the most common, avoidable rejections cited in municipal plan-review handouts.
- Administrative gaps. Unsigned sheets, the wrong file format, or a missing permit number stall a review before anyone even opens the drawing.
Coordination failures show up here too. Mechanical duct routing or an architectural ceiling change that never made it back to the fire alarm set is a common source of clashes; construction teams see the same pattern in takeoff measurement errors that surface only after drawings are locked.
Permit Review and AHJ Submission: What Actually Speeds Things Up
Getting a submittal through review fast has less to do with drawing quality and more to do with following the AHJ’s own procedural expectations.
- Confirm the AHJ’s requirements before drafting anything. Call or check the jurisdiction’s website for the adopted code edition, whether a PE stamp is required for the building’s occupancy classification, and any local checklist beyond NFPA 72.
- Format the PDF the way the jurisdiction wants it. Most municipalities want a single searchable PDF, a graphic scale on every floor plan sheet, and a blank area, often around 3.5 by 2 inches, reserved for the approval stamp.
- Prepare revision submittals cleanly. Include a short clarification letter addressing each prior comment and submit only the revised sheets, clearly marked, rather than resending the entire set.
- Know when a PE or NICET-certified technician needs to sign off. Many jurisdictions require a professional engineer’s stamp on new systems above a certain size, while a NICET-certified technician’s review satisfies plan-review expectations on straightforward alterations.
A Practitioner’s Checklist Before Any Submittal Goes Out
Pre Action Fire, Inc has designed, installed, and inspected commercial fire alarm systems across the Denver Metro Area since 2009, and every submittal runs through the same internal checks before it reaches an AHJ.
The company’s technicians hold NICET certification, which grounds every plan review comment in a documented standard rather than a guess. The checklist covers:
- Sequence of operation cross-checked against every interfacing system (elevator, smoke control, suppression)
- Battery and voltage-drop calculations re-run independently of the original design spreadsheet
- Mounting heights verified against architectural reflected ceiling plans
- Device legend counts reconciled against the actual floor plan symbol count
Key Takeaways
A code-compliant fire alarm shop drawing package succeeds or fails on five elements: sequence of operation, scaled floor plans, riser diagrams, manufacturer calculations, and a clean device legend.
| Point | Details |
|---|---|
| Sequence of operation comes first | Draft the input/output matrix early since it drives device placement and interface testing. |
| NFPA 72 is the baseline | Chapter 7 and Section 7.4 define minimum documentation even where local codes add requirements. |
| Calculations need to show work | Battery standby and voltage-drop math must include load tables, not just final numbers. |
| Format for the AHJ, not just the code | Single searchable PDF, graphic scale, and a blank stamp area prevent administrative rejections. |
| Pre Action Fire applies NICET-level review | Their technicians cross-check sequence of operation and mounting heights before every submittal. |
Why Field Experience Beats a Checklist Alone
The conventional advice on fire alarm shop drawings treats them like a paperwork exercise: hit every line on the NFPA 72 list and you’re done. That’s incomplete. The checklist tells you what has to appear on the page. It doesn’t tell you whether the sequence of operation actually holds up when a suppression system trips a duct detector at the same moment an elevator tries to recall.
That’s the gap most guidance skips. A drawing can satisfy every line item in Section 7.4 and still get rejected because the interfaces between systems were never walked through as a scenario, only as a list. The reviewers who catch this fastest are the ones who’ve sat through an acceptance test where a programmed sequence didn’t match the narrative on paper.
If you’re assembling a package for the first time, prioritize the sequence of operation over the floor plan polish. A beautifully drafted plan with a vague sequence still gets rejected. A rough plan with an airtight sequence usually just gets a formatting comment. Fix the logic before you fix the line weights.
— Results
Get Your Fire Alarm Shop Drawings Right the First Time
Building a code-compliant shop drawing package in-house means someone on your team has to know NFPA 72’s documentation requirements cold, run battery and voltage-drop math correctly, and anticipate exactly what a Denver-area AHJ will flag. Preactionfire is the alternative to guessing your way through plan review. Its NICET-certified technicians design, calculate, and submit fire alarm systems for commercial and industrial buildings across the Denver Metro Area, catching the interface and calculation gaps that cause rejections before a reviewer ever sees them.
Whether you’re upgrading an existing system or designing one from scratch, Preactionfire’s fire alarm system design and compliance services cover the full path from initial drawings to acceptance testing. If your building falls under Denver-area code requirements specifically, the Denver fire alarm compliance guide breaks down local AHJ expectations in more detail. Contact Preactionfire for a consultation on your next fire alarm project, and get a submittal built to pass review the first time.
