TL;DR:
- Proper fire alarm placement follows NFPA 72 standards, requiring detectors inside bedrooms, outside sleeping areas, and on every building level. Proper positioning avoids dead air zones, HVAC interference, and false alarm triggers, ensuring effective detection and occupant safety. Early coordination with building systems prevents costly retrofits and ensures code compliance.
Proper fire alarm placement is defined by NFPA 72, the National Fire Alarm and Signaling Code, which sets the minimum standard for detector locations in every commercial and residential building in the United States. These fire alarm placement tips go beyond the basics: they address the acoustic, airflow, and architectural realities that determine whether an alarm actually saves lives or simply passes inspection. Non-compliance carries real consequences. Violations can result in daily fines up to $1,000 for the first 180 days, with potential imprisonment in extreme cases. Getting placement right from the start is the only approach that protects occupants and avoids penalties.
1. What are the top fire alarm placement locations required by standards?
NFPA 72 requires at least one smoke alarm inside every bedroom, outside every sleeping area in the adjacent hallway, and on every level of the building including the basement. A 3-bedroom, 2-level home needs a minimum of 5 alarms to meet that standard. For a commercial facility with multiple floors and mixed-use spaces, the count climbs quickly.
The best fire alarm locations in any building cover these zones without exception:
- Inside each sleeping room. Closed doors reduce the sound pressure of hallway alarms by 20–25 dB, which is enough to prevent a sleeping occupant from waking. An alarm inside the room eliminates that risk entirely.
- Outside each sleeping area. Place a detector in the hallway immediately adjacent to bedroom doors to catch fires originating outside the room before they reach occupants.
- Every building level, including basements. Fires start in mechanical rooms, storage areas, and laundry spaces. A basement without a detector is a blind spot.
- Stairway tops. Heat and smoke rise. Stairways act as chimneys, making the top of each stairwell a high-priority detection zone.
- Living areas and common spaces. Large open areas need detectors spaced according to the ceiling area they cover. Check your local jurisdiction for spacing requirements, which typically follow NFPA 72 guidelines.
- Kitchens and cooking areas. Place alarms at least 10 feet from cooking appliances. This distance reduces nuisance alarms without leaving the space unprotected.
For multi-tenant commercial properties, each tenant space counts as its own zone. A smoke alarm installation guide tailored to Denver’s local codes can help facility managers map these zones accurately before installation begins.
2. How should fire alarms be positioned relative to ceilings, walls, and air vents?

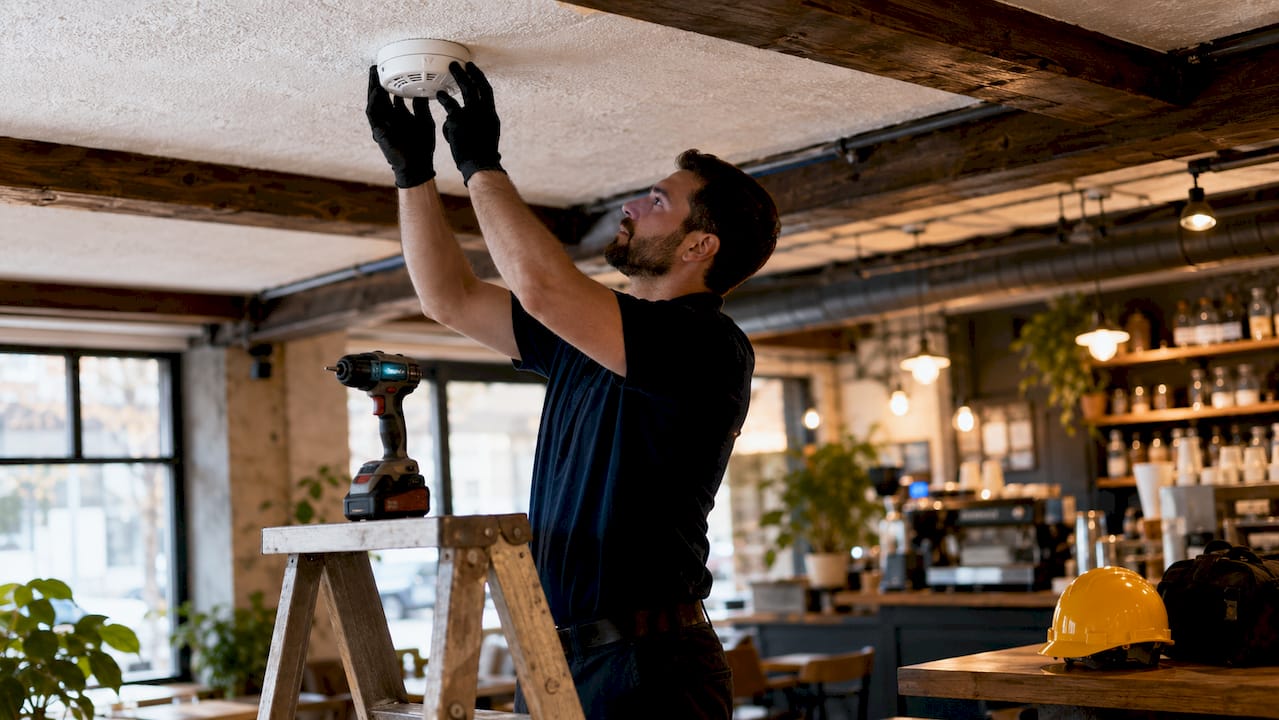

Ceiling mounting is the preferred position for smoke detectors in nearly every scenario. Smoke rises and spreads across the ceiling before descending, so a ceiling-mounted detector intercepts it first. If wall mounting is the only option, position the detector 4–12 inches below the ceiling. Anything lower than 12 inches from the ceiling misses the initial smoke layer.
Dead air zones are the most overlooked hazard in smoke detector positioning. Corners where two walls meet the ceiling trap air and prevent smoke from reaching the sensor. The apex of a cathedral ceiling creates the same problem. Mount within 3 feet horizontally from the peak on sloped ceilings to keep the detector in the active airflow path.
Air vents present a different challenge. Supply vents push clean air outward, which dilutes smoke concentration near the sensor and delays detection. Return air vents pull air away from the detector, creating a low-pressure zone that smoke avoids. Placing alarms near vents or dead air spaces delays smoke detection due to disrupted airflow. Keep detectors at least 3 feet from any supply or return vent.
Pro Tip: Map your HVAC duct layout on the ceiling plan before marking detector locations. Any spot within 3 feet of a vent or in a corner should be moved to the nearest clear ceiling area.
Furniture and cubicle partitions in open-plan offices also obstruct smoke paths. A detector mounted above a row of tall filing cabinets may never receive smoke from a fire on the other side. Plan detector locations based on the occupied floor plan, not just the empty building shell.
3. What common mistakes in fire alarm placement should facility managers avoid?
Most false alarms trace back to placement errors, not sensor failures. Nuisance alarms usually result from incorrect placement near kitchen heat or bathroom steam rather than any flaw in the detector itself. That distinction matters because the fix is relocation, not replacement.
The most frequent placement mistakes facility managers make include:
- Too close to bathrooms. Steam from showers triggers photoelectric sensors. Keep detectors at least 10 feet from bathroom doors.
- Too close to cooking appliances. A detector within 10 feet of a stove or oven will alarm during normal cooking. Move it farther away or use a heat detector in that zone instead.
- Ignoring HVAC airflow patterns. Air currents from supply vents push smoke away from sensors. Facility managers who place detectors without reviewing the HVAC layout create blind spots that only appear during an actual fire.
- Relying on hallway alarms for bedrooms. Sound attenuation through closed doors is significant. A hallway alarm alone does not meet NFPA 72 and does not reliably wake sleeping occupants.
- Installing in dead air zones. Ceiling corners and cathedral apex points trap air. Smoke reaches these spots last, if at all.
- Ignoring insect activity. Insects entering detector housings trigger false signals. In facilities with known pest issues, use detectors with insect screens and inspect them regularly.
Pro Tip: After installation, walk the floor plan with a smoke pen or aerosol smoke test. Verify that simulated smoke reaches each detector within a reasonable time. This test reveals dead air zones and HVAC interference that a visual inspection misses.
For buildings undergoing upgrades, fire alarm retrofitting guidance covers how to correct legacy placement errors without a full system replacement.
4. How should smoke alarms and carbon monoxide detectors differ in placement?
Smoke alarms and carbon monoxide detectors follow different physics, so they require different mounting heights. Treating them the same way is a compliance error that also reduces detection accuracy.
| Device | Mounting height | Best location | Avoid |
|---|---|---|---|
| Smoke alarm | Ceiling or 4–12 inches below ceiling on wall | Bedrooms, hallways, every floor | Kitchens within 10 ft, bathrooms, vents |
| CO detector | 4–5 feet from floor on wall | Sleeping areas, every floor | Directly above gas stoves or furnaces |
Carbon monoxide is nearly the same density as air, so it distributes evenly throughout a room rather than rising to the ceiling. A CO detector mounted on the ceiling misses the breathing zone where concentration builds first. Wall mounting at 4–5 feet places the sensor exactly where occupants breathe.
CO detectors placed directly above gas stoves or furnaces pick up trace emissions during normal appliance operation, generating nuisance alarms. Keep CO detectors at least a few feet away from any fuel-burning appliance. Interconnected units on every floor give occupants a simultaneous alert regardless of where the CO source originates.
CO detector placement rules are distinct from smoke alarm requirements and critical for both occupant safety and code adherence. Combination smoke and CO units are available, but verify that the mounting height satisfies both requirements before installing them. In most cases, ceiling mounting serves the smoke function well while compromising CO detection.
5. How to integrate fire alarm placement planning with other building systems
Fire alarm placement decisions made in isolation from the rest of the building design create expensive problems later. Proper fire alarm placement must be integrated with HVAC and architectural plans early in construction to avoid costly rework and ensure effective performance.
The practical steps for early integration include:
- Coordinate with the HVAC engineer before finalizing detector locations. Duct layouts, supply diffuser positions, and return air grille locations all affect smoke travel. A detector placed without this information may sit in a permanent airflow shadow.
- Review electrical rough-in plans alongside alarm layouts. Conduit runs and junction box locations should align with detector positions to avoid surface-mounted wiring that violates code or creates obstruction.
- Account for future tenant configurations. An open floor plan today may become a series of private offices next year. Place detectors to serve both configurations, or plan for additional units when partitions go up.
- Avoid installing alarms near vents and return air paths. Facility managers should coordinate alarm layouts with electrical and HVAC designs to prevent airflow issues and sensor obstruction.
- Document every detector location in the as-built drawings. Future inspections, renovations, and system expansions depend on accurate records. Missing documentation leads to duplicate work and compliance gaps.
For new construction projects in Colorado, fire alarm notification device compliance requirements add another layer of coordination. Notification devices such as horns and strobes must be positioned to meet audibility and visibility thresholds throughout the occupied space, which ties directly into the detector layout.
Early integration also reduces cost. Moving a detector after drywall is installed means patching, repainting, and potentially rerouting wiring. Planning the layout during the design phase costs nothing extra. Correcting it after construction can run into thousands of dollars per device.
For guidance on new construction wiring coordination, working with licensed electricians during the design phase prevents the most common installation errors before they become code violations.
Key takeaways
Correct fire alarm placement follows NFPA 72 requirements for bedroom, hallway, and every-level coverage, then adds positioning discipline around HVAC vents, dead air zones, and CO detector height to ensure detection works when it matters.
| Point | Details |
|---|---|
| NFPA 72 minimum coverage | Install alarms inside every bedroom, outside sleeping areas, and on every building level including the basement. |
| Ceiling vs. wall mounting | Mount on the ceiling or 4–12 inches below the ceiling on walls; avoid dead air corners and vent proximity. |
| CO detector height | Place carbon monoxide detectors at 4–5 feet on walls, not on ceilings, to detect at breathing level. |
| Avoid false alarm zones | Keep smoke alarms at least 10 feet from cooking appliances and bathroom doors to prevent nuisance triggers. |
| Integrate with building systems | Coordinate detector locations with HVAC and electrical plans before construction to avoid costly rework. |
What I’ve learned after years of fire alarm placement reviews
The most common mistake I see in commercial facilities is not ignorance of the code. Facility managers generally know NFPA 72 exists. The mistake is treating placement as a box to check rather than a system to design. A detector installed in the right room but above an HVAC supply vent is effectively decorative. A smoke detector in the wrong place is a useless decoration, and that is not an exaggeration.
The second pattern I see repeatedly is deferred planning. Teams wait until construction is nearly complete before calling in the fire alarm contractor. By that point, the HVAC ducts are in, the ceiling grid is set, and the ideal detector locations are already compromised. The contractor places units where they can, not where they should be. The system passes inspection on paper but underperforms in practice.
Post-installation surveys are underused. Walking the space with a smoke test after installation takes less than an hour and reveals problems that no drawing review will catch. I would make that survey mandatory for every new installation and every major renovation. The cost is negligible. The value is a system that actually works.
— Preactionfire
Professional fire alarm installation for Denver facilities
Placement decisions made without certified expertise create liability and compliance gaps that surface at the worst possible time.
Preactionfire has served the Denver Metro Area since 2009 with NICET-certified technicians who design and install compliant fire alarm systems for commercial and industrial properties. Every installation is coordinated with NFPA 72 requirements and local Denver codes, covering detector placement, notification device positioning, and system integration with existing building infrastructure. Whether you are managing a new construction project or correcting placement errors in an existing facility, Preactionfire provides the technical review and installation precision your building requires. Contact Preactionfire directly to schedule a site assessment.
FAQ
Where does NFPA 72 require smoke alarms to be installed?
NFPA 72 requires at least one smoke alarm inside every bedroom, outside each sleeping area in the hallway, and on every level of the building including the basement. A 3-bedroom, 2-level home requires a minimum of 5 alarms to meet this standard.
How far should a smoke detector be from a cooking appliance?
Smoke detectors must be installed at least 10 feet from cooking appliances to reduce false alarms from cooking heat and steam. In kitchens where 10 feet is not achievable, a heat detector is the preferred alternative.
Why do CO detectors need to be mounted at a different height than smoke alarms?
Carbon monoxide distributes evenly at breathing height rather than rising to the ceiling, so CO detectors must be wall-mounted at 4–5 feet from the floor. Ceiling mounting places the sensor above the concentration zone where occupants are actually exposed.
What causes most false fire alarms in commercial buildings?
Most nuisance alarms result from incorrect placement near bathroom steam, kitchen heat, or HVAC supply vents rather than sensor defects. Relocating the detector to a compliant position resolves the problem without replacing the unit.
How early should fire alarm placement be planned in a new construction project?
Fire alarm placement should be coordinated during the design phase alongside HVAC and electrical layouts. Planning after construction begins risks placing detectors in airflow shadows or dead air zones that compromise detection and require expensive rework to correct.
